STM32F103C8T6 ARM STM32 STM32F Minimum Development Board Module MCU Core Board M
- Item No : 285027889826
- Condition : New
- Brand : Unbranded
- Seller : cosna168
- Current Bid : US $11.00
-
* Item Description

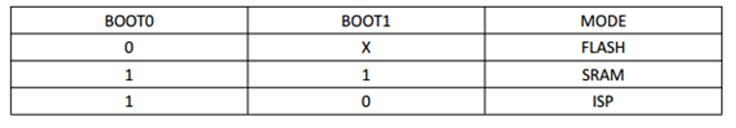

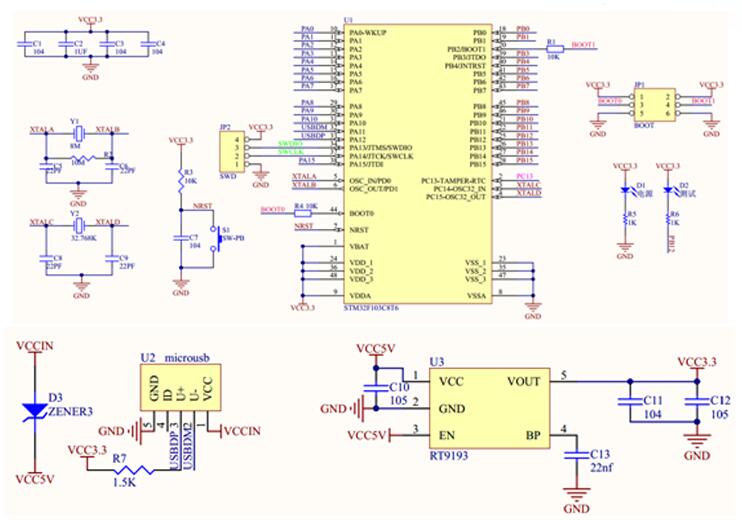

- STM32F103C8T6 ARM STM32 Minimum Development Board Module MCU Core Board MicroUSB for Arduino Diy KitProduct FeaturesSTM32 development board adopts STM32F103C8T6 LQFP-48 main control chip, 72MHz working frequency, main control chip internal ARM-Cortex-M3 core, 64KB-FLASH, 20KB-SRAM, 3 USART, 3 16-bit timers, 2 SPI, 2 IIC, 1 USB, 1 CAN, 1 PWM timer, 1 12-bit ADC, 1 independent watchdog, 1 window watchdog, 1 system timebase timer, 1 RTC, On-board 3.3V LDO low-dropout regulator chip, 32.768KHz crystal oscillator, leads BOOT and SWD pins.Core board boot mode
Note: MicroUSB can only be used as a USB communication experiment for the chip. It can download the debugging program through the SWD interface or download the program through the serial port pin ISP with USB to TTL serial board.
